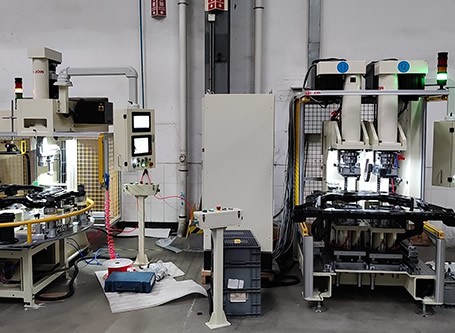

P-series servo press fitting system
Long-Term Pressure Holding
Precision servo press fitting system with unlimited pressure holding, real-time force and displacement monitoring, 20 kHz data acquisition and 0.01 mm position accuracy for demanding automotive assembly and forming applications.
Fast Response Service
We provide efficient after-sales support, remote diagnosis, and technical assistance to ensure continuous operation.
Installation & Commissioning
Our engineers provide equipment installation, commissioning, and operator training to help customers start production smoothly.
Product Description
Precision Motion Control
• Force accuracy ≤ 1% FS and position accuracy ≤ 0.01 mm.
• Integrated force and displacement measurement.
• Supports force, displacement and external signal control.
Real-Time Process Monitoring
• 100% real-time monitoring of every pressing process.
• Measurement data and assembly results can interact with PLCs and servers for process traceability.
• Built-in inspection programs support a wide range of pressing requirements.
Long-Term Pressure Holding
• Unlimited pressure holding time.
• Designed for applications requiring long-term pressure holding and strict process control.
• Real-time monitoring of force, displacement and time throughout the process.
• Suitable for material forming, hydrogen fuel cell stack pressing and other precision assembly processes.
Modular System Architecture

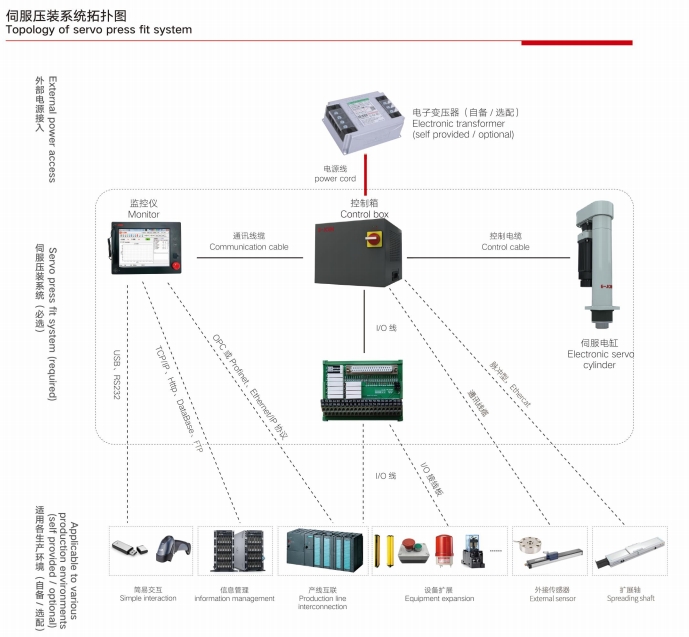

The servo press system features a modular architecture consisting of a servo cylinder, E-Press industrial software, control box, monitoring instrument and cable module.
The control box manages servo motor operation and force data acquisition, while the E-Press industrial software provides real-time force-displacement curves, force-time curves, judgment windows and envelope detection.
Measurement data and assembly results can be integrated with PLCs and servers for production data traceability. Multiple servo cylinders can also be monitored simultaneously through a single monitoring system.
E-Press Industrial Software

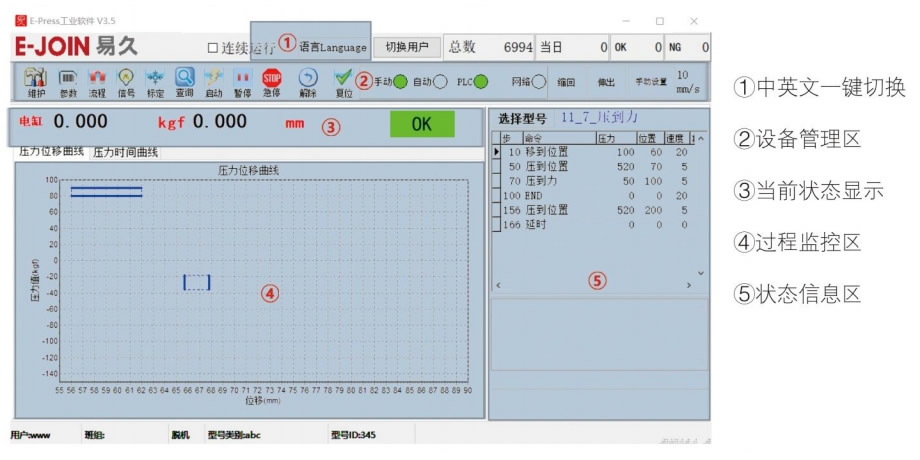

E-Press is Windows-based industrial software designed for intuitive servo press process control and monitoring.
It supports press process programming, real-time force-displacement and force-time curve display, multiple pressing steps and multiple curves for a single workpiece.
The software provides judgment windows, envelope curves and measurement functions, OK/NG evaluation, hierarchical user permissions, press history records, operation logs and alarm logs.
It supports mainstream database formats including MS SQL and Microsoft Access and provides interfaces for secondary development.

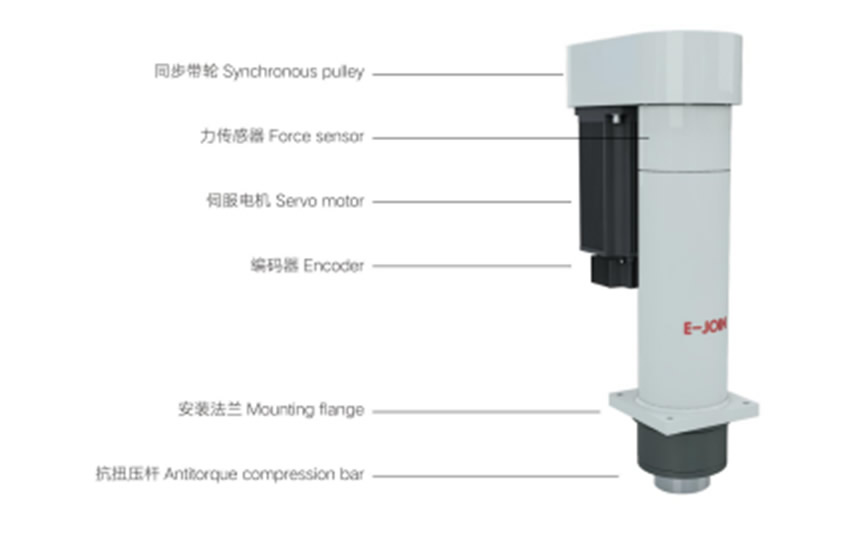

Servo Electric Cylinder
High-strength mechanical structure designed for long-term operation.
Origin positioning and travel limit functions are completed by the integrated system.
Built-in pressure sensor.
Anti-torsion press rod supports direct installation of press tooling.
Data Management
The system provides a 20 kHz data acquisition frequency with 24-bit acquisition accuracy and can store more than 5 million press fitting curves. E-Press industrial software also supports secondary development for integration into production systems.
Energy Efficiency
Compared with traditional hydraulic systems, the servo press system can reduce energy-related costs by up to 80%, helping lower overall production costs.
Long Service Life
The maintenance-free design provides a service life of more than 12 million cycles, supporting reliable long-term operation in demanding production environments.
Technical Specifications
| Specification | Stroke (mm) | Maximum Pressure (kN) | Running Speed (mm/s) | Force Accuracy | Position Accuracy (mm) |
|---|---|---|---|---|---|
| 5KN | 100-200 | 5 | 0.02~1300 | 1%FS | 0.01 |
| 10KN | 100-400 | 10 | 0.02~125 | 1%FS | 0.01 |
| 30KN | 200-400 | 30 | 0.02~100 | 1%FS | 0.01 |
| 50KN | 200-400 | 50 | 0.02~100 | 1%FS | 0.01 |
| 100KN | 300-400 | 100 | 0.02~90 | 1%FS | 0.01 |
| 200KN | 300-400 | 200 | 0.02~60 | 1%FS | 0.01 |
