N-Series Servo Press Fitting System
High-Precision Servo Pressing
High-precision servo press fitting system with 2–350 kN force capacity, 0.01 mm position accuracy, real-time process monitoring and full pressing data traceability for automotive assembly lines.
Fast Response Service
We provide efficient after-sales support, remote diagnosis, and technical assistance to ensure continuous operation.
Installation & Commissioning
Our engineers provide equipment installation, commissioning, and operator training to help customers start production smoothly.
Product Description
The N-Series Servo Press Fitting System is a high-precision CNC press unit designed for automated assembly and manufacturing applications. It integrates servo motion control, force and displacement measurement, process monitoring and production data management, making it suitable for precision assembly in automotive manufacturing and industrial production lines.
With precise servo control, real-time process monitoring and flexible system integration, the system helps manufacturers achieve stable, repeatable and traceable press fitting processes.
Motion Control
High-Precision Servo Control
Force accuracy up to 1% FS
Position accuracy up to 0.01 mm
Stable and precise servo motion control
Force & Displacement Measurement
Integrated force and displacement detection
Real-time monitoring of pressing conditions
Continuous measurement throughout the assembly process
Flexible Process Control
Force-controlled pressing
Displacement-controlled pressing
External signal-based control
Real-Time Process Detection
100% Process Monitoring
Each pressing cycle can be monitored in real time to detect process deviations and maintain consistent assembly quality.
Process Data Traceability
Measurement data and assembly results can interact with PLCs and production servers, supporting process data recording and traceability.
Multiple Evaluation Functions
Built-in evaluation functions support different pressing requirements, including judgment windows, envelope curves and measurement analysis.
Wide Application Range
The servo press fitting system is available in multiple force configurations, covering applications from low-force precision assembly to high-force industrial pressing.
Press fitting and component assembly
Automotive component assembly
Forming and riveting
Punching operations
Elasticity and performance testing
High-cycle automated assembly
Modular System Architecture

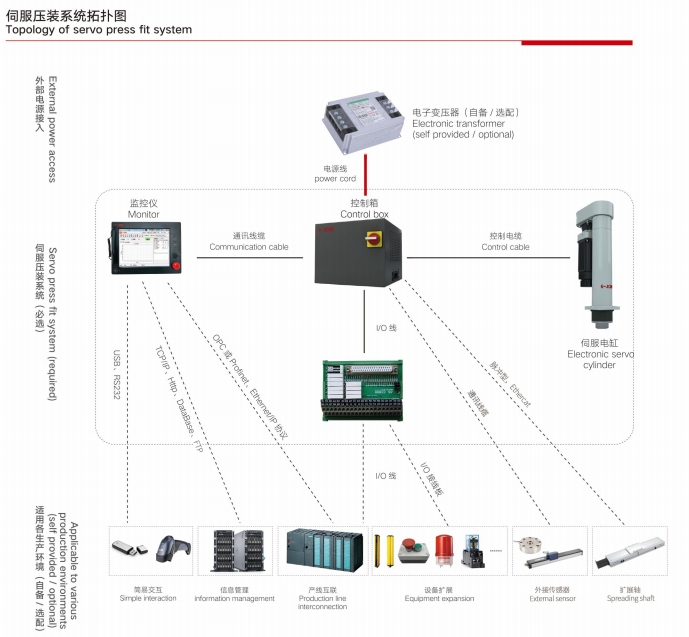

The system adopts a modular design consisting of a servo electric cylinder, industrial software, control box, monitoring instrument and cable module. Each module works together to provide precise motion control, process monitoring and data acquisition.
The modular architecture allows the servo press system to be flexibly integrated into automated assembly equipment and automotive production lines.
E-Press Industrial Software

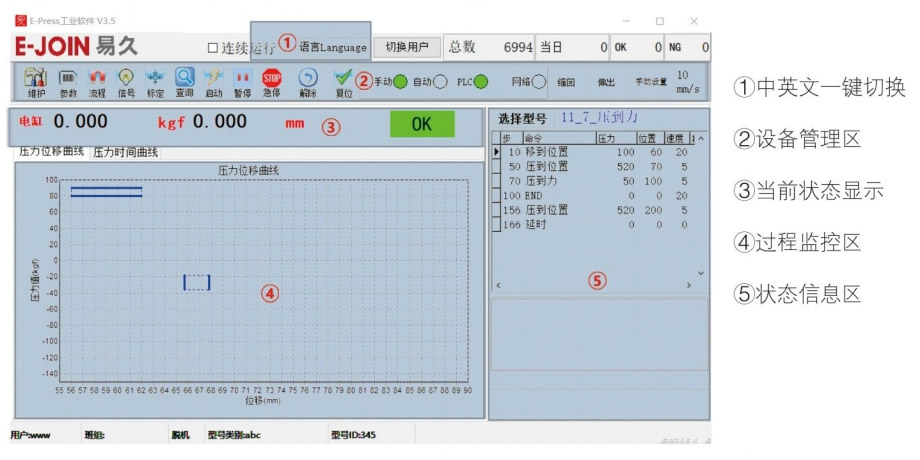

E-Press industrial software provides an intuitive interface for programming, monitoring and evaluating press fitting processes. It enables operators to monitor process curves and assembly results in real time.
Real-time force-displacement curve display
Real-time force-time curve display
Multiple pressing steps and process curves
Judgment window and envelope curve evaluation
Measurement and OK/NG result evaluation
Hierarchical user permission management
Press fitting history and operation logs
Alarm log management
Support for MS SQL and Microsoft Access databases

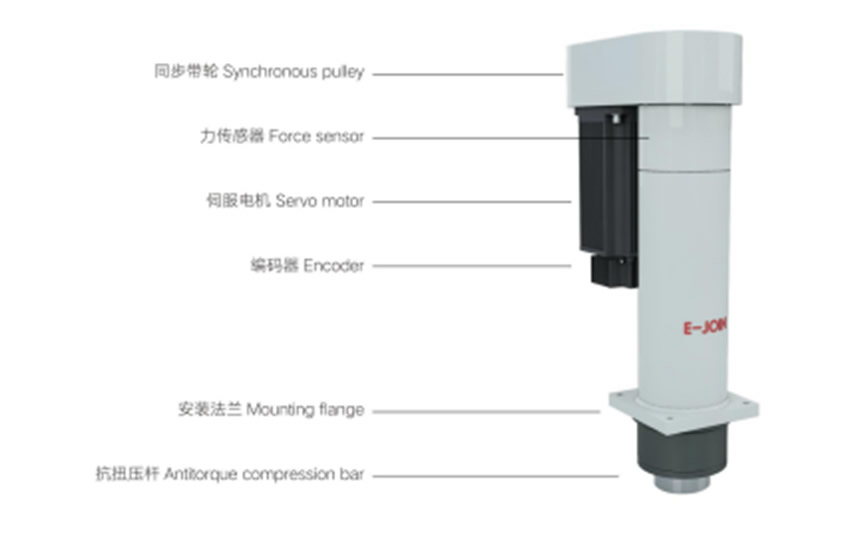

Servo Electric Cylinder
High-Strength Structure
High-strength mechanical construction supports stable and reliable operation in demanding industrial production environments.
Integrated Pressure Sensor
The built-in pressure sensor provides accurate force measurement for real-time process monitoring.
Flexible Installation
The anti-torsion press rod can be directly connected to press tooling, simplifying integration into automated assembly equipment.

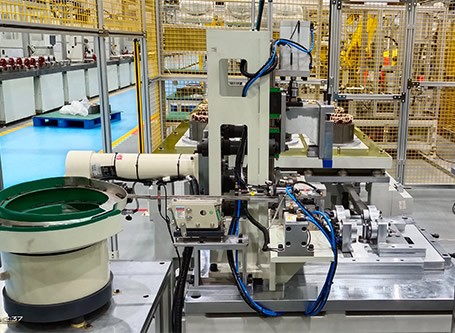

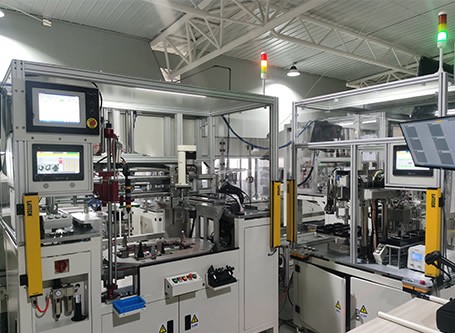

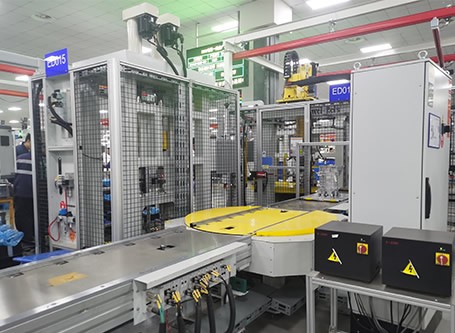

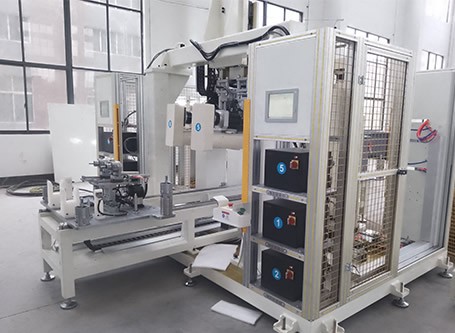

Automotive Production Line Integration
Designed for automated manufacturing environments, the servo press fitting system can be integrated with PLCs, industrial control systems and production servers. Its precise control and process data capabilities make it suitable for automotive assembly lines requiring high repeatability, quality control and process traceability.
Technical Specifications
| Specification | Stroke (mm) | Maximum Pressure (kN) | Running Speed (mm/s) | Force Accuracy | Position Accuracy (mm) |
|---|---|---|---|---|---|
| 2KN | 100-200 | 2 | 0.02-260 | 1%FS | 0.01 |
| 5KN | 100-200 | 5 | 0.02-260 | 1%FS | 0.01 |
| 10KN | 100-400 | 10 | 0.02-250 | 1%FS | 0.01 |
| 20KN | 100-400 | 20 | 0.02-125 | 1%FS | 0.01 |
| 30KN | 200-400 | 30 | 0.02-200 | 1%FS | 0.01 |
| 50KN | 200-400 | 50 | 0.02-200 | 1%FS | 0.01 |
| 80KN | 300-400 | 80 | 0.02-160 | 1%FS | 0.01 |
| 100KN | 300-400 | 100 | 0.02-140 | 1%FS | 0.01 |
| 150KN | 200-400 | 150 | 0.02-140 | 1%FS | 0.01 |
| 200KN | 200-400 | 200 | 0.02-100 | 1%FS | 0.01 |
| 350KN | 200-400 | 350 | 0.02-50 | 1%FS | 0.01 |
