H-Series Servo Press Fitting System
Micrometer-Level Precision for Critical Assembly
Ultra-precision servo press with ≤0.3% FS force accuracy and ≤0.005 mm position accuracy for micrometer-level automotive assembly and testing.
Fast Response Service
We provide efficient after-sales support, remote diagnosis, and technical assistance to ensure continuous operation.
Installation & Commissioning
Our engineers provide equipment installation, commissioning, and operator training to help customers start production smoothly.
Product Description
Ultra-Precision Motion Control
The H-Series servo press provides force accuracy of ≤ 0.3% FS and position accuracy of ≤ 0.005 mm, supporting precision assembly and testing applications with micrometer-level requirements.
Integrated force and displacement measurement enables precise control based on force, displacement or external signals.
Real-Time Process Detection
Every pressing process can be monitored in real time to ensure consistent assembly quality.
Measurement data and assembly results can interact with PLCs and servers to support production process traceability.
Built-in inspection programs support a wide range of precision pressing and testing requirements.
Micrometer-Level Precision
With a force range from 1 kN to 30 kN and position accuracy of 0.005 mm, the H-Series is designed for precision assembly, testing and other applications requiring extremely accurate pressing control.
Modular System Architecture

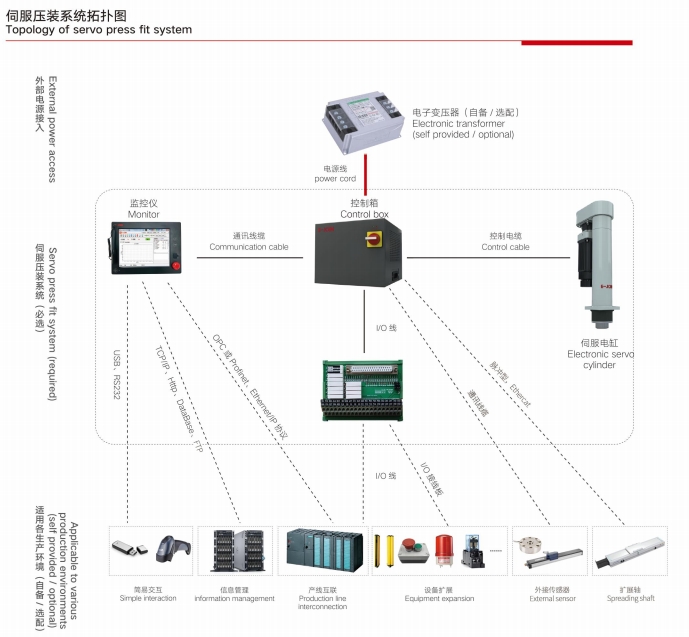

The servo press system adopts a modular design consisting of a servo cylinder, E-Press industrial software, control box, monitoring instrument and cable module.
The control box manages servo motor operation and force data acquisition, while the E-Press software provides real-time force-displacement curves, force-time curves, judgment windows and envelope detection.
The system can be flexibly integrated into different control systems, while a single monitoring system can monitor multiple servo cylinders simultaneously.
E-Press Industrial Software

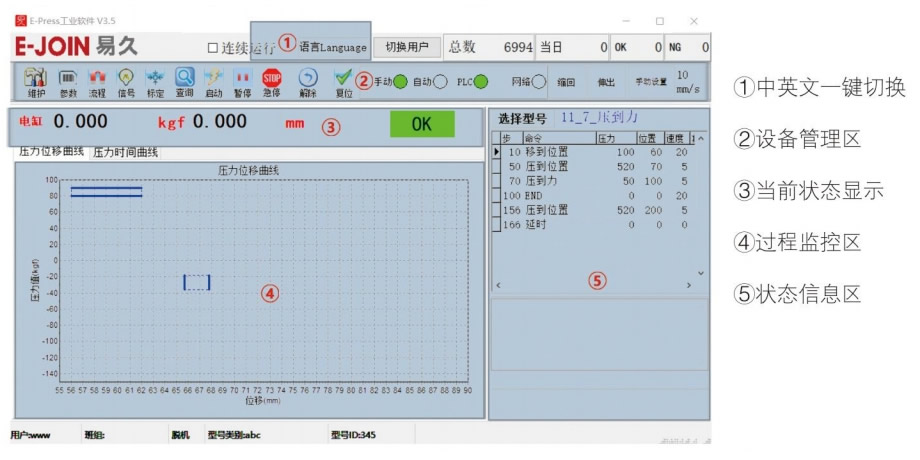

E-Press is Windows-based industrial software for intuitive servo press process programming and monitoring.
It supports real-time display of force-displacement and force-time curves, multiple pressing steps and multiple curves for a single workpiece.
Evaluation functions include judgment windows, envelope curves and measurement functions. The software also provides OK/NG results, hierarchical user management, press history records, operation logs and alarm logs.
E-Press supports mainstream database formats including MS SQL and Microsoft Access, as well as secondary development.

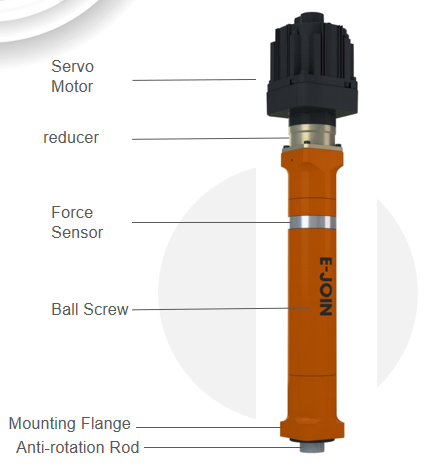

Servo Electric Cylinder
High-strength mechanical structure designed for long-term operation.
Integrated origin positioning and travel limit functions.
Built-in pressure sensor.
Anti-torsion press rod supports direct installation of press tooling.
Data Management
The system provides a 20 kHz data acquisition frequency and 24-bit acquisition accuracy, with storage capacity for more than 5 million press fitting curves. E-Press also supports secondary development for integration with production systems.
Energy Efficiency
Compared with traditional hydraulic systems, the servo press can reduce energy-related costs by up to 80%, helping lower production costs.
Long Service Life
The maintenance-free design provides a service life of more than 12 million cycles for reliable long-term operation.
Technical Specifications
| Specification | Stroke (mm) | Maximum Pressure (kN) | Running Speed (mm/s) | Force Accuracy | Position Accuracy (mm) |
|---|---|---|---|---|---|
| 1KN | 100-200 | 1 | 0.02~400 | 0.3%FS | 0.005 |
| 2KN | 100-200 | 2 | 0.02~400 | 0.3%FS | 0.005 |
| 3KN | 100-200 | 3 | 0.02~400 | 0.3%FS | 0.005 |
| 5KN | 100-200 | 5 | 0.02~400 | 0.3%FS | 0.005 |
| 10KN | 100-200 | 10 | 0.02~400 | 0.3%FS | 0.005 |
| 20KN | 100-200 | 20 | 0.02~400 | 0.3%FS | 0.005 |
| 30KN | 100-200 | 30 | 0.02~400 | 0.3%FS | 0.005 |

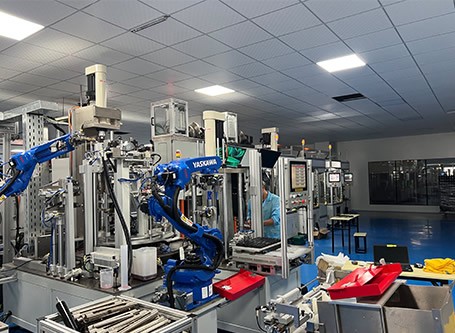

Applications
