SQLF65115 High-Speed Dot Peen Marking Machine
High-Speed Brake Disc Marking
High-speed dot peen marking machine designed for brake discs and automotive metal parts, delivering fast, stable and permanent traceability marking.
Fast Response Service
We provide efficient after-sales support, remote diagnosis, and technical assistance to ensure continuous operation.
Installation & Commissioning
Our engineers provide equipment installation, commissioning, and operator training to help customers start production smoothly.
Product Description
The SQLF65115 high-speed dot peen marking machine is designed for automotive production lines, especially for brake discs and other metal components requiring permanent identification. It provides fast, stable and reliable marking performance for high-volume manufacturing.
High-Speed Marking:
Achieves marking speeds up to 6 characters per second (character height: 5mm, width: 3mm), improving production efficiency for automotive parts manufacturing.
Stable Transmission:
Precision screw transmission replaces traditional belt drive, providing smoother operation, higher accuracy and better long-term stability.
Powerful Servo Drive:
Upgraded from stepper motor to servo motor with closed-loop control, ensuring stronger driving force and more reliable marking performance.
Permanent Dot Peen Marking:
Creates durable identification marks suitable for metal parts traceability in automotive manufacturing environments.
Technical Specifications
| Marking Area | 65 × 30 mm / 65 × 115 mm / 115 × 115 mm |
| Marking Depth | 0-0.8 mm (Depending on material) |
| Marking Speed | 6 characters/s (Character height: 5 mm, Character width: 3 mm, Flat surface marking) |
| Marking Type | Pneumatic Dot Peen |
| Machine Weight | 9.8 kg / 17.3 kg / 19.3 kg |
| Protection Rating | IP54 |
| Controller | Super Servo Controller (GFHSF2B01) / Integrated Controller (GF920AU-SF) |
Applicable Industries
Powertrain
Body-in-White
Transmission
Chassis System

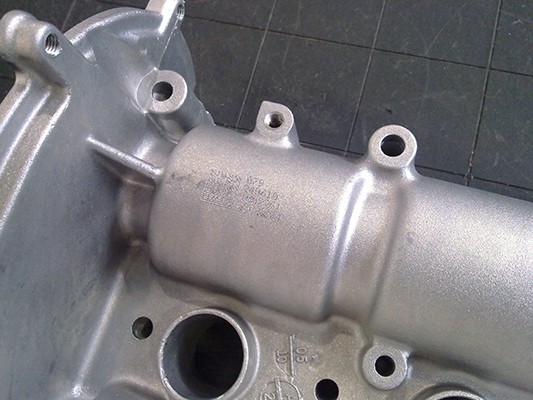

Applications
