QL6030 Compact Dot Peen Marking Machine
Compact Design for Narrow Spaces
Compact dot peen marking machine designed for automotive production lines, featuring space-saving installation, durable structure, and reliable permanent marking performance.
Fast Response Service
We provide efficient after-sales support, remote diagnosis, and technical assistance to ensure continuous operation.
Installation & Commissioning
Our engineers provide equipment installation, commissioning, and operator training to help customers start production smoothly.
Product Description
QL6030 Compact Dot Peen Marking Machine
The QL6030 Compact Dot Peen Marking Machine is specially designed for automotive production lines where installation space is limited.
With a compact structure and lightweight design, it can be easily integrated into narrow workstations while meeting the requirements of high-volume automotive manufacturing.
The machine provides stable permanent marking performance for automotive parts, serial numbers, and traceability identification applications.
Product Features
Compact Design for Limited Spaces
Small and lightweight structure allows easy installation in narrow production line workstations.Automotive Production Line Integration
Designed for fixed installation on automotive manufacturing lines, supporting continuous mass production requirements.High Strength Aluminum Alloy Structure
Adopts high-strength aluminum alloy construction with compact design, excellent rigidity and durability.Easy Maintenance and Protection
Integrated removable structure with good sealing performance, improving equipment reliability and maintenance efficiency.Stable Dot Peen Marking Performance
Provides clear and permanent marking on automotive components and metal parts.
Technical Specifications
| Specification | Value |
|---|---|
| Marking Area | 60 × 30 mm |
| Marking Depth | 0-0.8 mm (Depending on Material) |
| Marking Speed | 3 Characters/Second (Character Height: 4 mm, Character Width: 2.5 mm, Flat Surface Marking) |
| Marking Type | Pneumatic Dot Peen Marking |
| Machine Weight | 3.8 kg |
| Protection Rating | IP54 |
| Cable Outlet Direction | Rear Outlet (Standard), Side Outlet Available |
| Controller | GF920 |
Applicable Industries
Powertrain
Body-in-White
Transmission
Chassis System

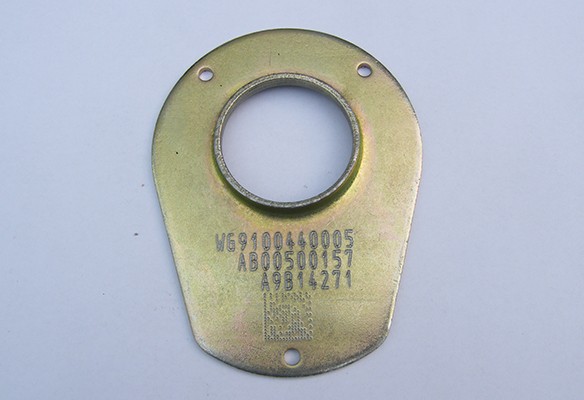

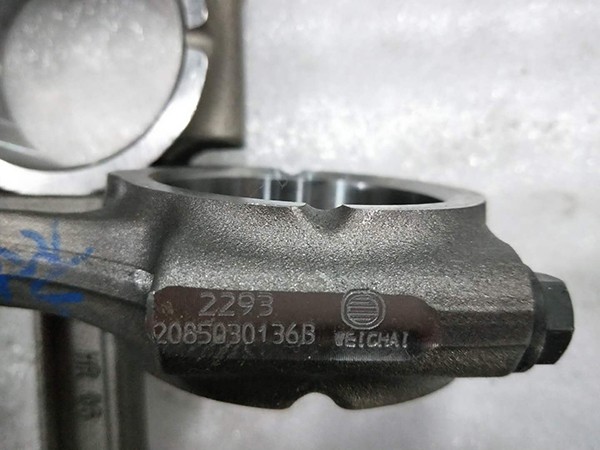

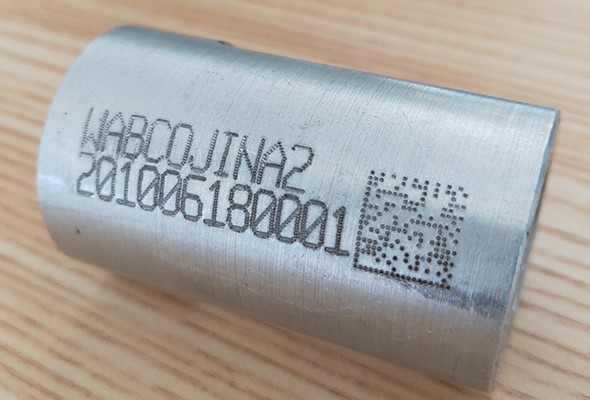

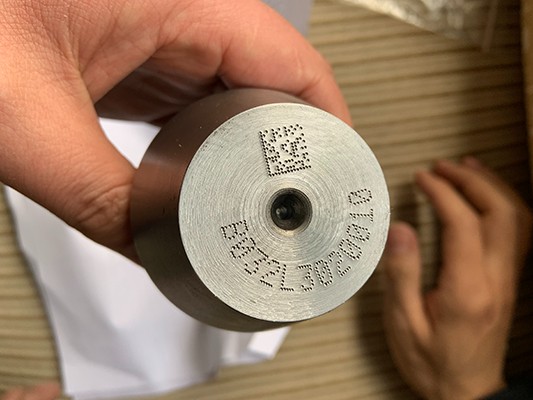

Applications
