12-Month Warranty
The complete machine is covered by a 12-month warranty, with professional technical support and long-term maintenance service.
Q11090 Dot Peen Marking Machine
High Versatility
High-performance dot peen marking machine designed for production lines, featuring stable operation, 24/7 continuous marking, wide marking range, and versatile applications in automotive manufacturing.
Fast Response Service
We provide efficient after-sales support, remote diagnosis, and technical assistance to ensure continuous operation.
Installation & Commissioning
Our engineers provide equipment installation, commissioning, and operator training to help customers start production smoothly.
Product Description
Q11090 Dot Peen Marking Machine
The Q11090 Dot Peen Marking Machine is designed for permanent marking applications on automotive production lines and industrial manufacturing environments.
With a compact structure, high-speed marking capability, and strong adaptability, it is suitable for online marking of engine components, automotive parts, and metal products requiring permanent identification.
The machine supports continuous 24-hour operation and provides stable marking performance for high-volume production environments.
Product Features
Stable Production Line Operation
Designed for fixed installation on production lines, meeting the requirements of continuous industrial manufacturing and mass production.High-Speed Dot Peen Marking
Equipped with high-quality motor drive, providing fast movement, smooth operation, and accurate marking performance.24/7 Continuous Operation
Robust structure design supports long-term continuous operation with excellent durability and reliability.Wide Application Range
Suitable for engine components, automotive parts, and various metal products requiring permanent traceability marking.Deep and Durable Marking
Adjustable marking depth up to 0.8mm depending on material hardness, ensuring clear and permanent identification.
Technical Specifications
| Specification | Value |
|---|---|
| Marking Area | 90 × 110 mm |
| Marking Depth | 0-0.8 mm (Depending on Material) |
| Marking Speed | 120 Characters/min (5 × 3 Character Size) |
| Machine Weight | 12 kg |
| Working Temperature | -10℃ to 40℃ |
| Maximum Marking Hardness | Rc60 |
| Controller | GFHSF2B01 Servo Controller / GF920AU-SF Integrated Controller |
Applicable Industries
Powertrain
Body-in-White
Transmission
Chassis System

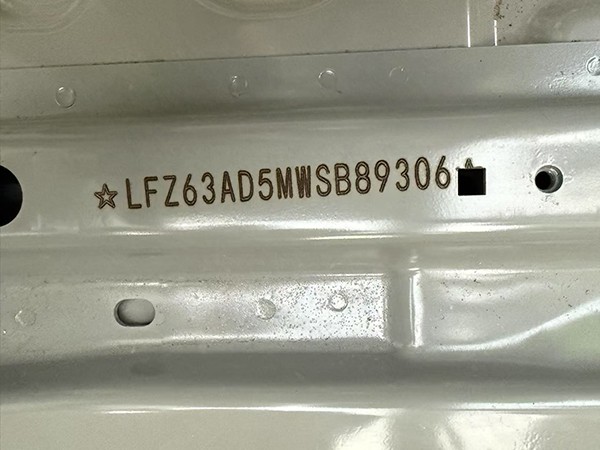

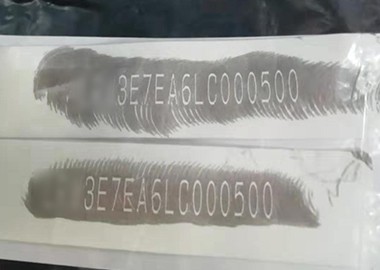

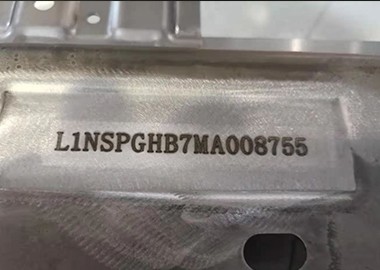

Applications
