Deep Laser Marking Machine
Deep VIN Marking on High-Strength Materials
Deep VIN marking on high-strength steel with over 0.2mm marking depth, supporting automotive mass production, robot integration, and intelligent traceability.
Fast Response Service
We provide efficient after-sales support, remote diagnosis, and technical assistance to ensure continuous operation.
Installation & Commissioning
Our engineers provide equipment installation, commissioning, and operator training to help customers start production smoothly.
Product Description
Easy Rubbing
KINMARK Deep Laser Marking Machine adopts a special marking process to ensure clear rubbing results after painting.
Easy Integration
Designed with various mounting interfaces, the system can be quickly integrated with industrial robots or assisted manipulators for automated production lines.

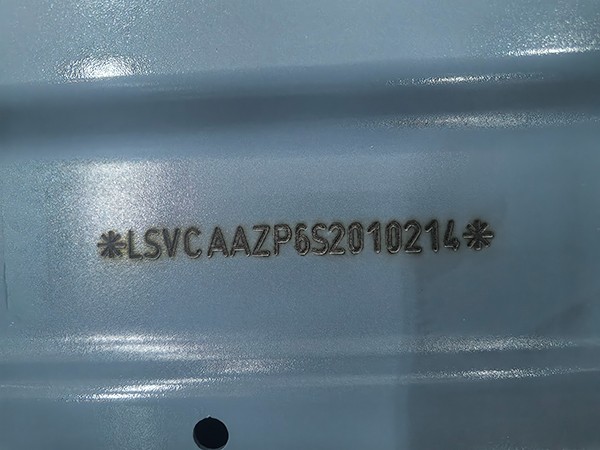

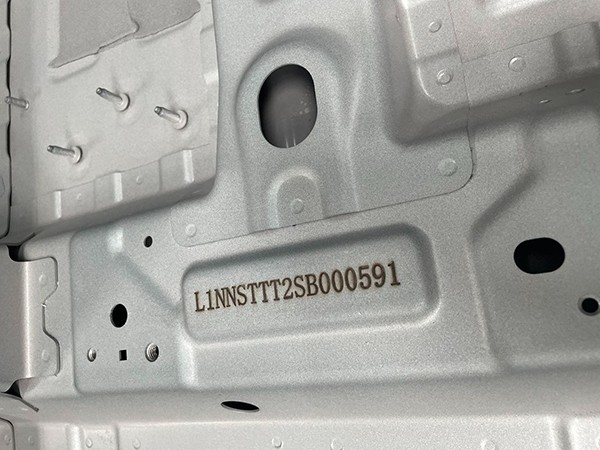

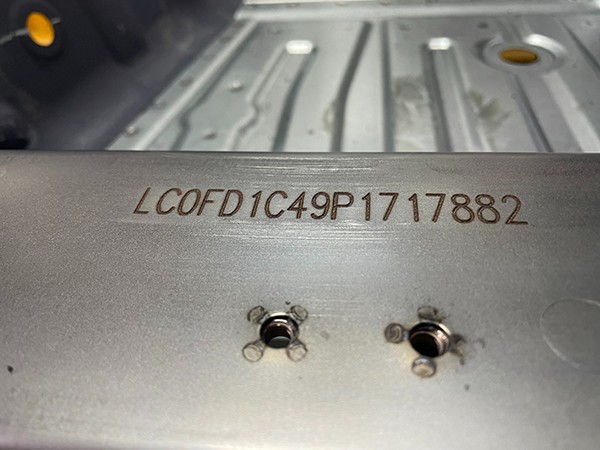

Deep VIN Marking

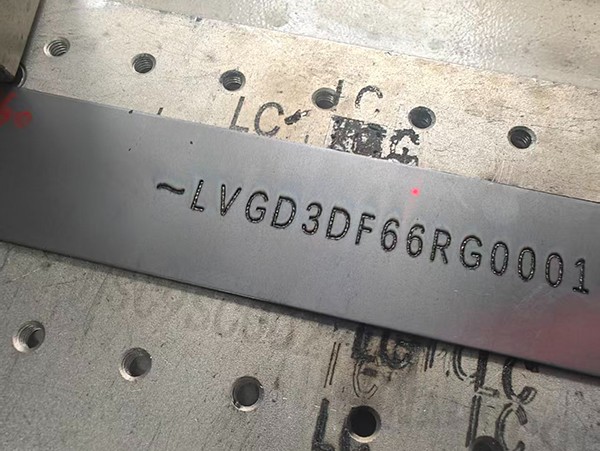

The system enables permanent VIN deep marking on high-strength steel plates with yield strength exceeding 700 MPa and hot-formed steel plates with strength up to 1500 MPa. The marking depth on body-in-white can reach more than 0.2 mm.
Vision Guidance
Optional 3D vision guidance system enables precise positioning and accurate marking to improve production efficiency.
Automatic Traceability
Optional 3D laser scanning measurement and OCR recognition systems provide online inspection of marking quality and ensure 100% traceability.
Technical Specifications
| Power Supply | AC220V ±10%, 50Hz ±2% |
|---|---|
| Power Consumption | <1000W |
| Laser Power | 200W |
| Marking Area | 112mm × 112mm |
| Marking Depth | ≥0.2mm |
| Operating Temperature | 0~40℃ |
| Operating Humidity | ≤90% RH (Non-condensing) |
Applicable Industries

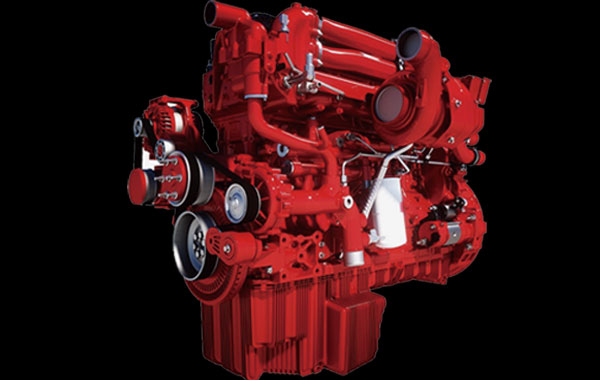

Powertrain

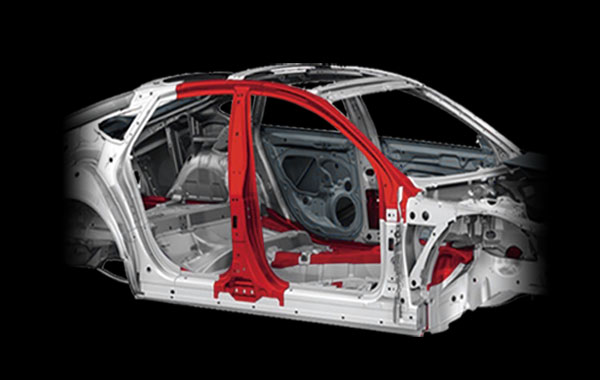

Body-in-White

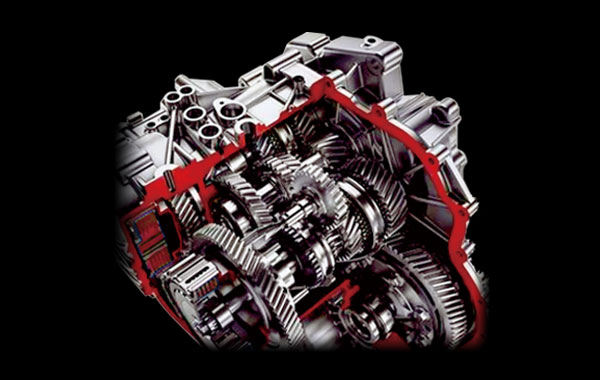

Transmission

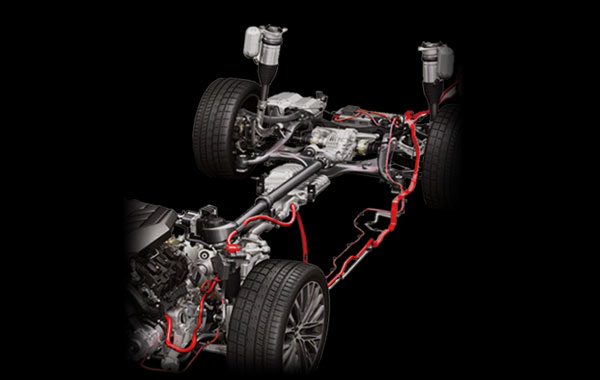

Chassis System
Applications
