Centering Module for Servo Press Fitting
Automatic Misalignment Compensation
Floating centering module for precision press fitting, compensating for angular and horizontal misalignment to improve assembly quality and protect tooling.
Fast Response Service
We provide efficient after-sales support, remote diagnosis, and technical assistance to ensure continuous operation.
Installation & Commissioning
Our engineers provide equipment installation, commissioning, and operator training to help customers start production smoothly.
Product Description
Precision Alignment for Press Fitting
The centering module guides the angle and position of pressing tools during interference assembly, helping compensate for misalignment between the part and the pressing hole.
Flexible Floating Mechanism
The integrated elastic mechanism allows angular or translational movement during assembly chamfering and automatically returns to its original position after press fitting is completed.
Improved Assembly Quality
By compensating for alignment errors during press fitting, the module helps reduce scratches, extrusion deformation and premature wear, improving the first-pass assembly qualification rate.
Angular and Omnidirectional Compensation
Angular Floating Module
Compensates for angular offset during precision press fitting.
Omnidirectional Floating Module
Compensates for both angular offset and horizontal offset during press fitting.
Easy Integration

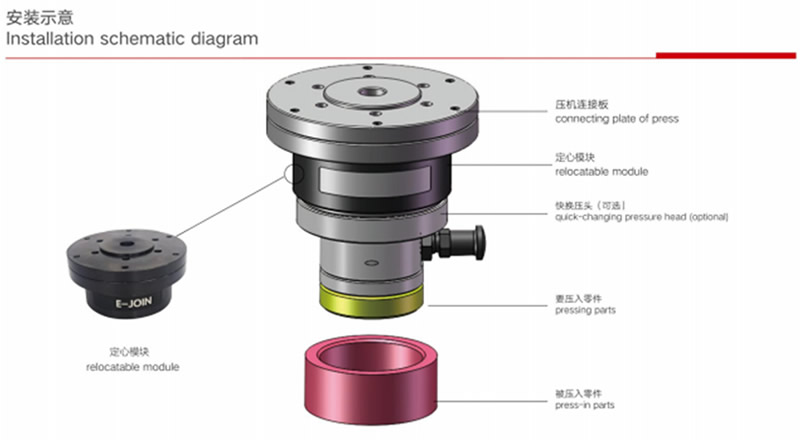

The centering module can be used together with servo press fitting systems, and its mounting interface is compatible with servo cylinders for flexible installation on the pressing head or lower tooling.
Applications
Suitable for precision press fitting of bearings, oil seals, bushings and other automotive and industrial components.
Technical Specifications
| Name | Model | Description |
|---|---|---|
| 10KN Angular Floating Module | EACM-10 | Vertical use, can be installed on the pressing head or on the lower tooling |
| 30KN Angular Floating Module | EACM-30 | |
| 50KN Angular Floating Module | EACM-50 | |
| 100KN Angular Floating Module | EACM-100 | |
| 10KN Omnidirectional Floating Module | EOCM-10 | Vertical use, can be installed on the pressing head or on the lower tooling |
| 30KN Omnidirectional Floating Module | EOCM-30 | |
| 50KN Omnidirectional Floating Module | EOCM-50 | |
| 100KN Omnidirectional Floating Module | EOCM-100 |
Note: The angular floating module compensates for angular offset only, while the omnidirectional floating module compensates for both angular offset and horizontal offset.
